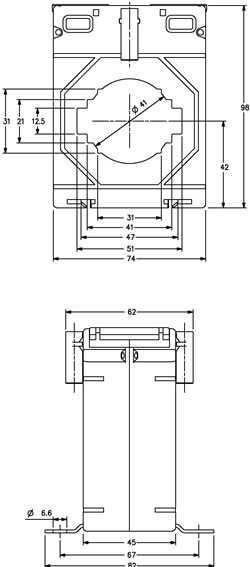

m7450 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 100/5A to 1000/5A and a plastic case in accordance with Thermal Class E. Capable of using incorporated DIN rail fitting or flat fixed on a base the M7450 comes complete with sealable integrated terminal cover.

Model M7450
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
100/5A 41mm dia hole 51 x 12.5 Busbar

74 x 45 x 98

42mm from deck to center of aperture

- - - 1.5 -
120/5A - - - 1.5 -
125/5A - - - 1.5 -
150/5A - - - 2.5 -
200/5A - - 1.5 3.75 2.5
250/5A 1.5 1.5 2.5 5 2.5
300/5A 1.5 1.5 5 7.5 3.75
400/5A 2.5 2.5 5 7.5 5
500/5A 5 5 7.5 10 7.5
600/5A 5 7.5 10 12.5 10
750/5A 5 10 12.5 15 10
800/5A 5 10 12.5 15 12.5
1000/5A 5 10 12.5 15 15
Availability Buy Product Online Save 5% if you pay by Credit Card
