m7440 din moutingi ct

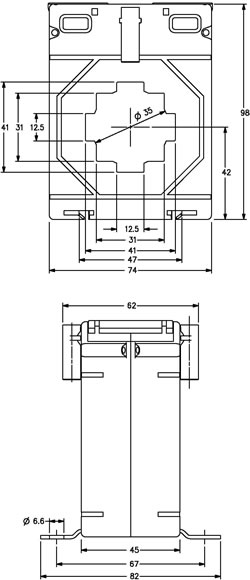

m7440 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 40/5A to 1000/5A and a plastic case in accordance with Thermal Class E. Capable of using incorporated DIN rail fitting or flat fixed on a base the M7440 comes complete with sealable integrated terminal cover.

Model M7440
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
40/5A 35mm dia hole 41 x 12.5 Busbar

74 x 45 x 98

42mm from deck to center of aperture

- - - 1 -
50/5A - - - 1 1.5
60/5A - - - 1 1.5
75/5A - - - 1.5 2.5
80/5A - - - 1.5 2.5
100/5A - - 1.5 2.5 3.75
120/5A - - 1.5 2.5 3.75
125/5A - - 1.5 2.5 3.75
150/5A - - 2.5 3.75 5
200/5A 2.5 2.5 3.75 5 7.5
250/5A 2.5 2.5 5 7.5 10
300/5A 2.5 2.5 5 7.5 10
400/5A 5 5 7.5 12.5 15
500/5A 5 7.5 10 15 -
600/5A 5 10 15 20 -
750/5A 5 10 15 20 -
800/5A 7.5 15 15 20 -
1000/5A 10 15 15 20 -
Availability Buy Product Online Save 5% if you pay by Credit Card
Range Not Stocked No
