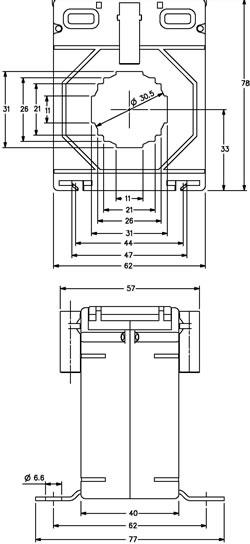

m6230 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 50/5A to 800/5A and a plastic case in accordance with Thermal Class E. Capable of using incorporated DIN rail fitting or flat fixed on a base the M6230 comes complete with sealable integrated terminal cover.

Model M6230
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
50/5A 30.5mm dia Hole, 31 x 11mm Busbar

62 x 40 x 78

33mm from deck to center of aperture

- - - 1.5 2.5
60/5A - - - 1.5 2.5
75/5A - - - 1.5 3.75
80/5A - - - 1.5 3.75
100/5A 1 1 1.5 2.5 5
120/5A - - 2.5 3.75 5
125/5A 1 1 2.5 3.75 5
150/5A 1.5 1.5 3.75 5 7.5
200/5A 2.5 2.5 5 7.5 -
250/5A 2.5 3.75 5 7.5 -
300/5A 2.5 3.75 7.5 10 -
400/5A 3.75 5 7.5 10 -
500/5A 5 5 10 10 -
600/5A 5 7.5 15 15 -
750/5A 5 10 15 15 -
800/5A 5 10 15 15 -
