Model M6220 Plastic Case Metering Transformer for kilowatt hour
Transformers
Relay Testing
Busbar Fabrication Equip.
About
Contact Us
  t: +44 (0) 1355 236 057

m6220 metering current transformer

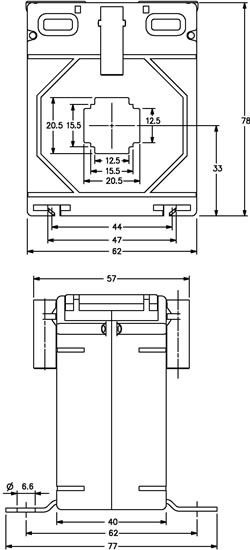

m6220 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 50/5A to 400/5A and a plastic case in accordance with Thermal Class E. Capable of being mounted using incorporated DIN rail fitting or flat fixed on a base the M6220 comes complete with sealable integrated terminal cover.

Model M6220
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
50/5A 20.5 x 12.5mm Busbar

62 x 40 x 78

33mm from deck to center of aperture

    - 1.5 2.5
60/5A     - 1.5 2.5
75/5A - - - 3.75 5
80/5A - - 1.5 3.75 5
100/5A 1.5 - 2.5 5 5
120/5A 1.5 - 3.75 5 7.5
125/5A 1.5 - 3.75 5 7.5
150/5A 1.5 - 3.75 7.5 -
200/5A 3.75 5 7.5 10 -
250/5A 2.5 2.5 10 12.5 -
300/5A 3.75 5 10 12.5 -
400/5A 3.75 7.5 15 15 -
Availability Buy Product Online Save 5% if you pay by Credit Card
Range Not Stocked No
