m8660

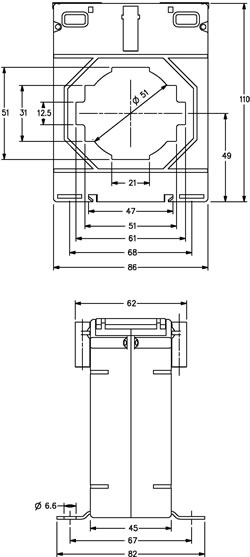

m8660 outline drawing



Power Monitoring & Control Current Transformer

Current Transformers with a ratio of Ip/5, for measurement devices such as ammeters, kilowatt hour meters and multi meters. Ratios ranging from 100/5A to 1600/5A and a plastic case in accordance with Thermal Class E. Capable of using incorporated DIN rail fitting or flat fixed on a base the M8660 comes complete with sealable integrated terminal cover.

Model M8660
Primary Current Range Primary Accomodation

Body Unit Dimensions

(L x W x H) mm

Maximum VA at Accuracy Class
Class 0.2s Class 0.2 Class 0.5 Class 1 Class 3
100/5A 51mm dia hole 51 x 12.5 Busbar

86 x 45 x 110

49mm from deck to center of aperture

- - - - 1.5
120/5A - - - 1.5 2.5
125/5A - - - 2.5 3.75
150/5A - - - 2.5 3.75
200/5A - - 1.5 3.75 5
250/5A - - 2.5 5 7.5
300/5A 1.5 1.5 5 7.5 10
400/5A 2.5 2.5 10 12.5 15
500/5A 2.5 3.75 10 12.5 15
600/5A 5 5 15 15 20
750/5A 5 10 15 15 -
800/5A 7.5 12.5 20 20 -
1000/5A 10 15 20 20 -
1200/5A 10 15 20 20 -
1250/5A 10 15 20 20 -
1500/5A 10 5 20 20 -
1600/5A 10 15 20 20 -
Availability Buy Product Online Save 5% if you pay by Credit Card
